Explore Gallery & Specs
Click to view full specifications ▼
| Max Drill Diameter | Up to 10 mm |
| Machine Type | Automatic |
| Spindle Speed | 2501–3500 rpm |
| Number Of Spindles | 1 spindle |
| Brand | Jin Shaa |
| Power Consumption | 1 HP |
| Material | Mild Steel |
| Capacity(Ton) | 9mm, 9 mm ER16 |
| Number Of Shaft | 01 |
| Usage/Application | Center Drilling |
| Voltage | 440v Three phase |
| Reverse Rotation | No |
| Suitable Materials | Mild Steel |
| Size | 9 mm |
| Distance From Spindle To Table | NA |
| Overall Height | NA |
| Spindle Speed 4P | NA |

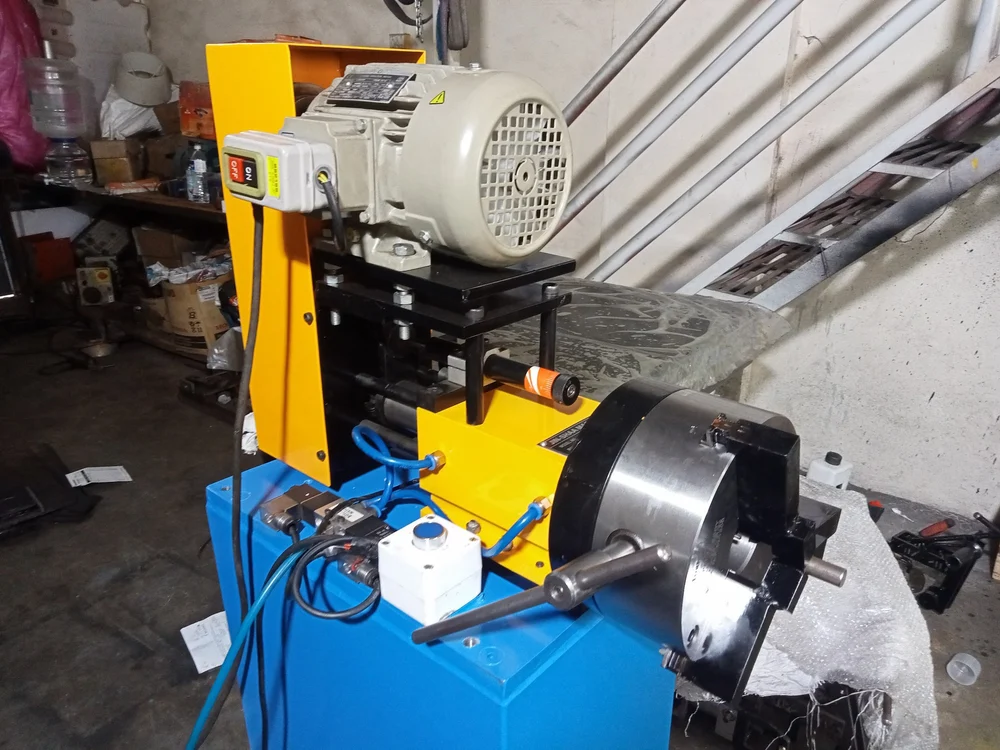

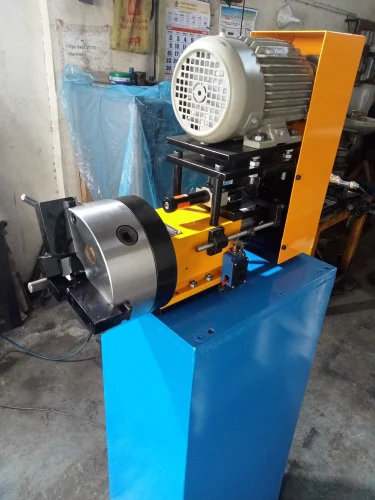

Automatic pneumatic center drilling machine for accurate center drilling of center drill dia up to 9mm spindle taper er16. Drilling Depth 30mm
Click to view full specifications ▼
| Max Drill Diameter | 26 mm |
| Machine Type | Portable Centre Drilling Machine |
| Spindle Speed | 450 RPM |
| Number Of Spindles | 1 Spindle |
| Power Consumption | 1.3 W |
| Material | Mild Steel |
| Capacity | 26 mm |
| Number Of Shaft | 01 |
| Usage/Application | Portable Center Drilling |
| Voltage | 220 V |
| Reverse Rotation | No |
| Suitable Materials | Steel |
| Size | 26mm max |
| Weight | 36 Kgs |
| After-Sales Service Required | No |
| Country of Origin | Made in India |
| Phase | 220V Single Phase |
| Jaw Capacity | 65mm to 310mm 310mm to 650mm |
| Drilling Diameter | 26 mm |

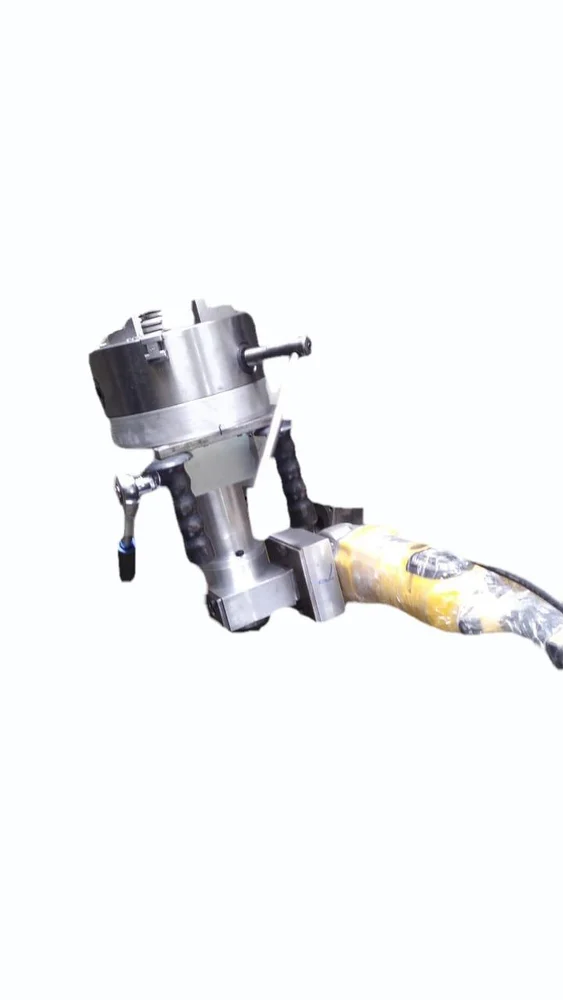

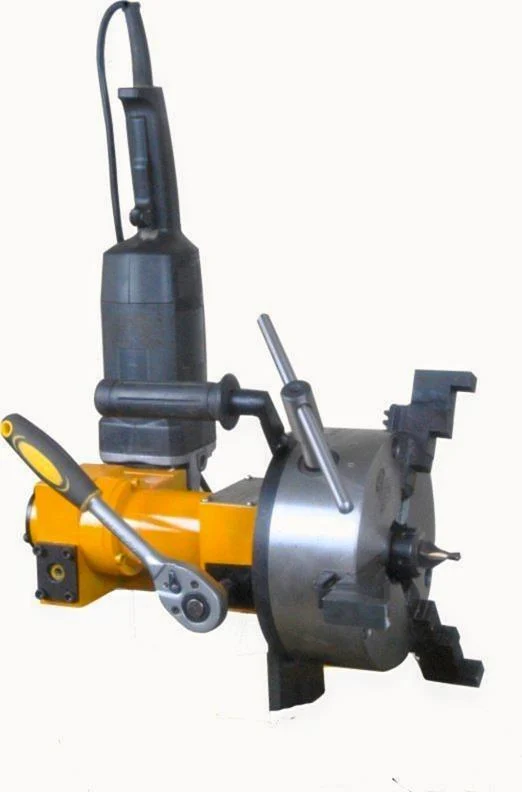

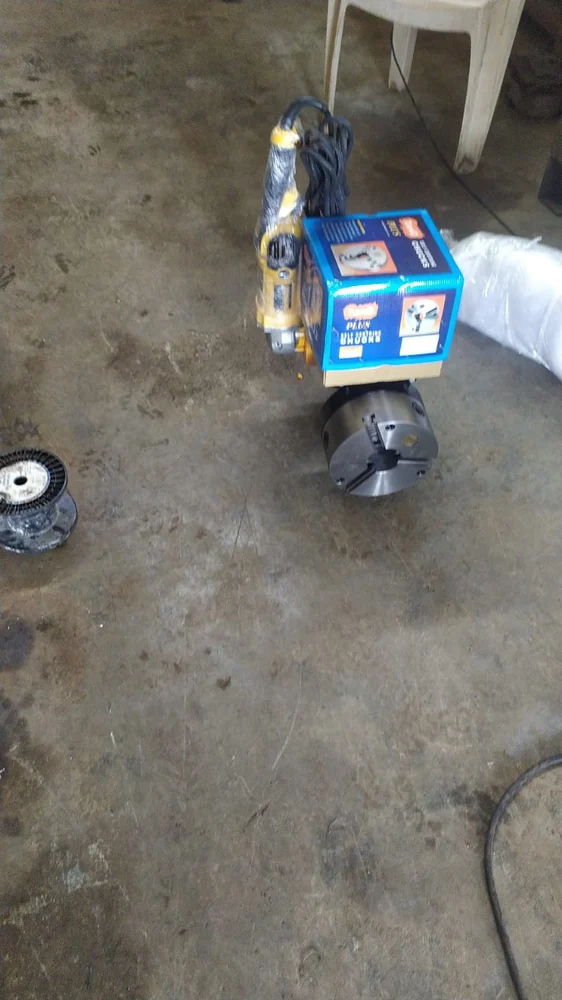

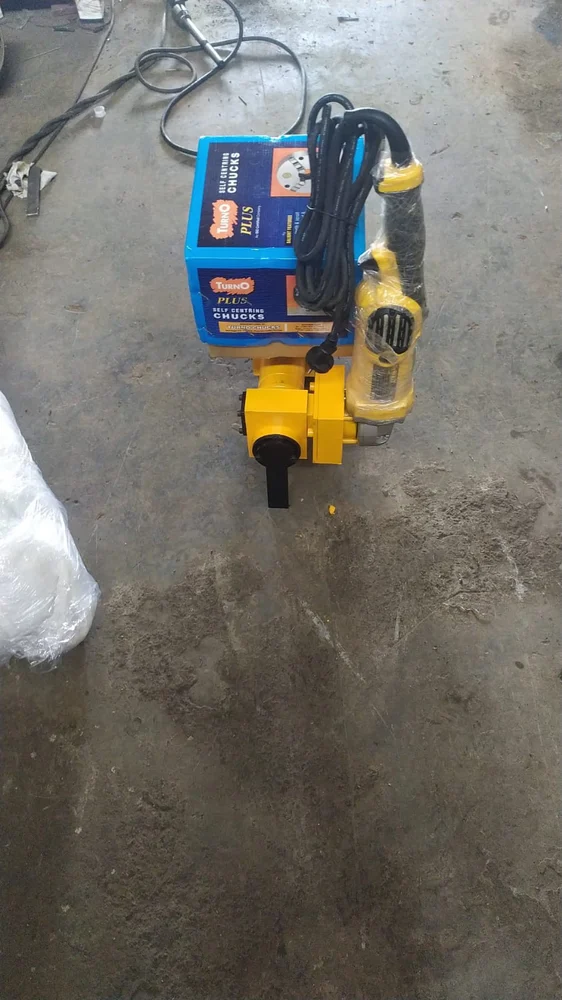

Portable Center Drill Machine with 1.3KW Single Phase Motor and standard 12" Jaw capacity is a precision center drilling machine for bar stock. It will accurately center shafts from 2 1/4" to 12" diameter. You can increase holding diameter to 24" with our optional extension jaws. Our stocked center drill range in sizes up to mm , which all fit our ER 40 SPINDLE .Supplied to Dept of Atomic Energy HyderabadThe drill is carried to the work, clamped onto the stock and the center is automatically located. Rotate the handle, like any drill press, and the center drilling is completed - eliminating the tie-up of heavier equipment.
Click to view full specifications ▼
| Max Drill Diameter | 17–25 mm |
| Machine Type | Manual |
| Spindle Speed | 450 |
| Number Of Spindles | 1 Spindle |
| Type | Straight Shank |
| Material | High Speed Steel |
| Power Consumption | 1.3 KW |
| Model Name/Number | JSM26 |
| Power Source | 220 V Single Phase |
| Capacity | 26 mm |
| Number Of Shaft | 01 |
| Length (mm) | 60-100 mm, 0-30 mm |
| Voltage | 220v |
| Usage/Application | Shaft Center Drilling |
| Reverse Rotation | No |
| Spindle Taper | ER40 |
| Drilling Speed | 65rpm to 450 rpm |
| Weight | 35 kgs |
| After-Sales Service Required | No |
| Item Weight In Kgs | 35kgs |
| Max Speed Rpm | 450 RPM |
| Country of Origin | Made in India |
Center Drill Machine with 1.3KW Single Phase Motor and standard 12" Jaw capacity is a precision center drilling machine for bar stock. It will accurately center shafts from 2 1/4" to 12" diameter. You can increase holding diameter to 24" with our optional extension jaws. Our stocked center drill range in sizes up to 26mm, which all fit our EWR40 SPINDLE .Supplied to Dept of Atomic Energy Hyderabad The drill is carried to the work, clamped onto the stock and the center is automatically located. Rotate the handle, like any drill press, and the center drilling is completed - eliminating the tie-up of heavier equipment. Technical Specifications Max Centre Drill Size 26mmInput Supply Voltage 220 V single phase ACMax Stroke of Unit 50mm and 110V AC.
