Industrial Series

Automatic Pipe Gas Cutting Machine

Click to view full specifications ▼

Cutting Diameter 2000MM
Machine Type Portable Cutter
Pipe Material Steel
Fuel Gas Acetylene
Cutting Type ACETYLENE
Capacity 5 MM THK TO 100MM THK
Automation Grade Automatic
Brand Jin Shaa
Voltage 220 V
Model Number JSM3000
Power 40 W
Pipe Diameter 100 mm onwards

Portable Oxy Fuel Cutting Machine is manufactured by us is renowned across the country for its optimum quality, functionality and energy-efficiency. In order to sustain harsh site conditions, the machine is made using steel. For easy accessibility to the clamping chain, the machine uses the available chains, rather than specially designed chains.

Machine Operation:
  • Select proper clamping chain as per diameter. Slide the machine along with chain on to the pipe.
  • Tighten the nut on top to tighten the chain Adjust cutting torch as per requirement.
  • Start gas supply to ignite torch.
  • Adjust flame length with the height adjustment knob.
  • For cutting the pipe, start push the toggle switch to forward.
  • The Machine starts indexing round on the pipe diameter by moving the knob on the drive the indxing speed can be controlled.

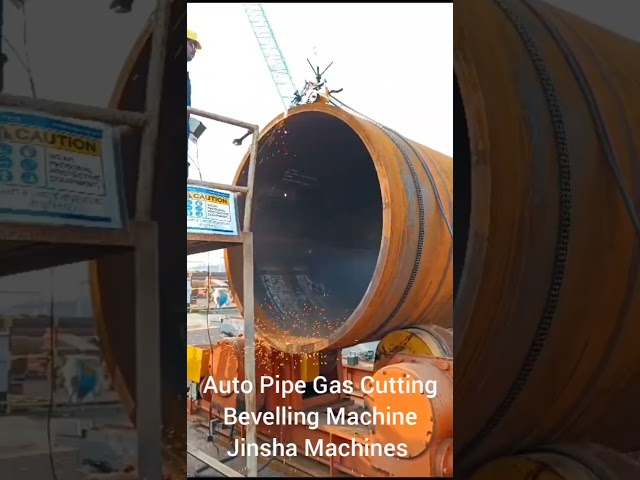

  • As the machine rotates along the diameter, the torch cuts the pipe.
  • Beveling can also be done by adjusting torch angle.
  • Bevel degree can be varied from vertical to max 45, as can be ascertained by the engraved degree dial on the machine.
  • Fixed length chains are supplied readily with machine for standard pipe diameters.

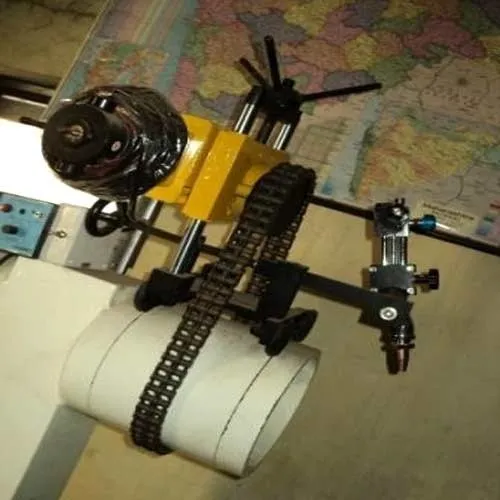

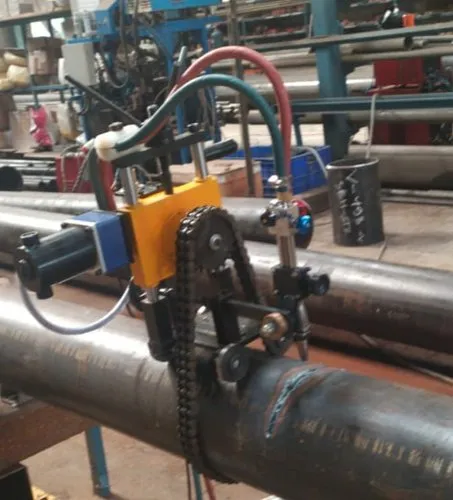

  • Machine mounts on Pipe OD and on rotating handle indexes around the pipe simultaneously cutting the pipe.
Download Brochure
Pipe Gas Cutting Machine
Pipe Gas Cutting Machine
▶
Pipe Gas Cutting Machine Pipe Gas Cutting Machine
Pipe Gas Cutting Machine
Explore Gallery & Specs
Industrial Series

Automatic Pipe Gas Cutting Machine

Click to view full specifications ▼

Automation Grade Automatic
Machine Type Electric
Pipe Diameter Capacity 300-600 mm
Bevel Angle 30-45 deg
Pipe Material Carbon Steel
Capacity 40 kg/hr
Max Wall Thickness 50MM
Min Width Clearance NA
Weight 18 KGS
Maximum Bevel Width 45 DEG
Power 40 watts
Material STEEL
Machine Capacity 100-2000
Product Type Pipe Gas Cutting Machine
Frequency 50 hz
Speed NA
Bevel Form V Bevel

Portable Oxy Fuel Cutting Machine is manufactured by us is renowned across the country for its optimum quality, functionality and energy-efficiency. In order to sustain harsh site conditions, the machine is made using steel. For easy accessibility to the clamping chain, the machine uses the available chains, rather than specially designed chains.

Machine Operation:
  • Select proper clamping chain as per diameter. Slide the machine along with chain on to the pipe.
  • Tighten the nut on top to tighten the chain Adjust cutting torch as per requirement.
  • Start gas supply to ignite torch.
  • Adjust flame length with the height adjustment knob.
  • For cutting the pipe, start push the toggle switch to forward.
  • The Machine starts indexing round on the pipe diameter by moving the knob on the drive the indxing speed can be controlled.
  • As the machine rotates along the diameter, the torch cuts the pipe.
  • Beveling can also be done by adjusting torch angle.
  • Bevel degree can be varied from vertical to max 45, as can be ascertained by the engraved degree dial on the machine.
  • Fixed length chains are supplied readily with machine for standard pipe diameters.
  • Machine mounts on Pipe OD and on rotating handle indexes around the pipe simultaneously cutting the pipe.
Additional Information:
  • Item Code: JSM2000
  • Production Capacity: 03
  • Delivery Time: exstock
  • Packaging Details: Wooden Box
